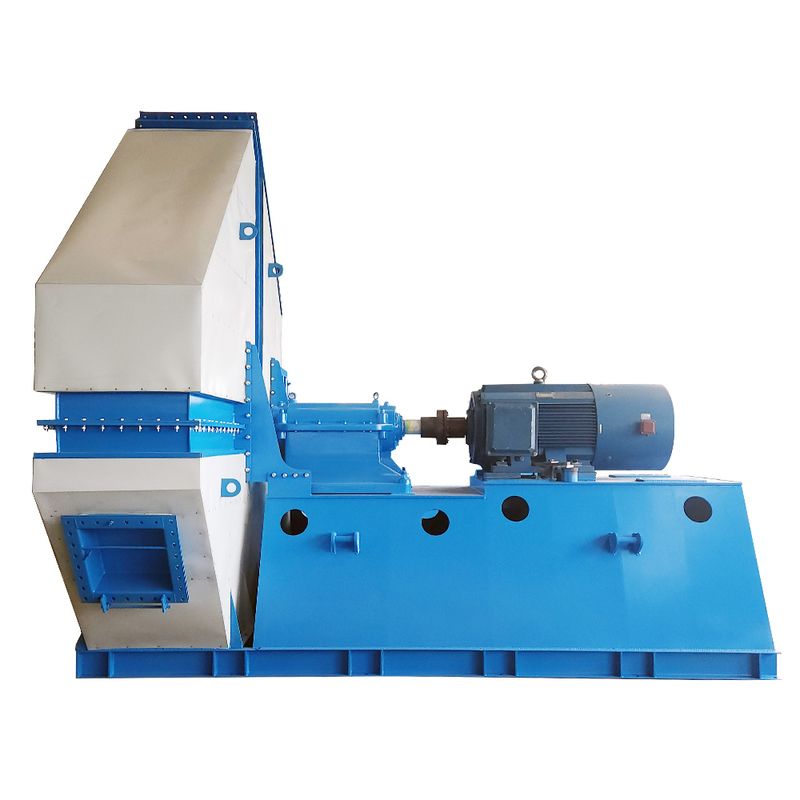

High Efficiency Metallurgy Plant Using Industrial Centrifugal Blower Fan China Made

Name: High Efficiency Metallurgy Plant Using Industrial Centrifugal Blower Fan China Made
Brand: Xinxiang SIMO Blower Co., Ltd.
SKU: SIMO Peniup 2XTF5
Availability: InStock

Rincian produk:

Tempat asal:	CINA
Nama merek:	SIMO BLOWER
Sertifikasi:	CE/ISO9001/ISO45001
Nomor model:	SIMO Peniup 2XTF5

Informasi Rinci

Tempat asal:

CINA

Nama merek:

SIMO BLOWER

Sertifikasi:

CE/ISO9001/ISO45001

Nomor model:

SIMO Peniup 2XTF5

Nama Produk:

Kipas sentrifugal efisiensi tinggi

Motor:

Siemens/ABB/menurut permintaan Anda

Pemasangan:

Berdiri bebas

Voltase:

380V/415V/440V/660V/6KV/10KV

Dukungan khusus:

ODM-OEM OBM

Layanan purna jual disediakan:

Instalasi lapangan, commissioning dan pelatihan

Jaminan:

1 tahun

Menyoroti:

High Light

Menyoroti:

industrial centrifugal blower fan

high efficiency metallurgy fan

China made centrifugal blower

Trading Information

Kuantitas min Order:

≥1 set

Harga:

$500-1,00000.00/set

Kemasan rincian:

1. Kasing kayu ekspor standar 2. Paket kain tahan air palet baja 3. Paket lain untuk memenuhi kebutu

Waktu pengiriman:

35 hari (akan dinegosiasikan)

Syarat-syarat pembayaran:

L/c, t/t, d/p

Menyediakan kemampuan:

300set 30 hari

Deskripsi Produk

High Efficiency Metallurgy Plant Using Industrial Centrifugal Blower Fan China Made

Product Features

Capable of outputting higher outlet pressure while providing more gas flow with lower noise. Stable operation at higher media temperatures.
Fan speed can be flexibly set by matching different pulley diameters to make the fan run at the highest efficiency point and reduce energy waste.
Motor sliding guides provided for easy tensioning of the belt to reduce energy loss due to belt slack.
Bearing housing reserved for temperature and vibration sensor mounting positions, convenient for installing fan operation monitoring devices.
Uses liquid lubricant - no need to open bearing housing to replace and fill oil. Observation window provided for easy monitoring of lubricating oil quality and quantity.
Bearing housing uses labyrinth mechanical seal with unique leak-proof oil design, vent hole at top, and sealant on joint, completely eliminating oil leakage possibility.
Impeller annealed to completely eliminate internal stress from welding, preventing creep and cracks.
Impeller subjected to high standard dynamic balance correction to ensure stable fan operation.
All products tested for running and vibration values after production for reliable operation.

Product Parameters

Technical specifications:

Series no.	5-12 series	Feature selection
Performance	Impeller diameter	400-3300mm
	Rotation speed	≤4000rpm
	Pressure range	684-8687Pa
	Flow range	590-700735m3/h
Structure	Blade type	Backward, Straight, Aerofoil type
	Impeller support	SWSI, DWDI, Overhung type
	Lubrication method	Oil bath, grease lubrication, lubrication oil station (can be specified)
Cooling method	Air cooling, Water cooling, Oil cooling (can be specified)
Driven mode	Direct driven, Coupling driven, Belt driven (can be specified)
Gas composition	Gas temperature	Normal, Customer request, ≥250ºC
Gas composition	Gas characteristic	Clean gas, Corrosive gas, Particulate dust, High temperature gas, Flammable/explosive gas

If you have requirements for our products, please provide your parameter information and our technical engineers will offer professional fan solutions.
